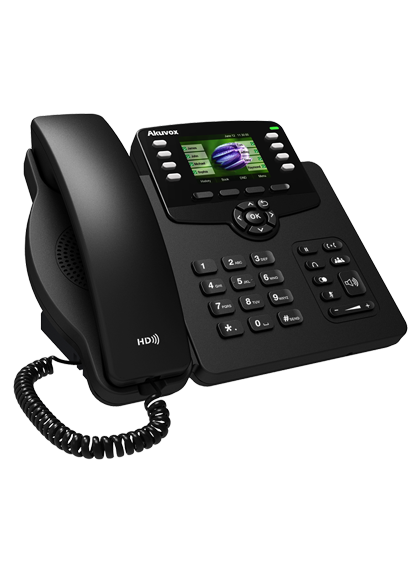

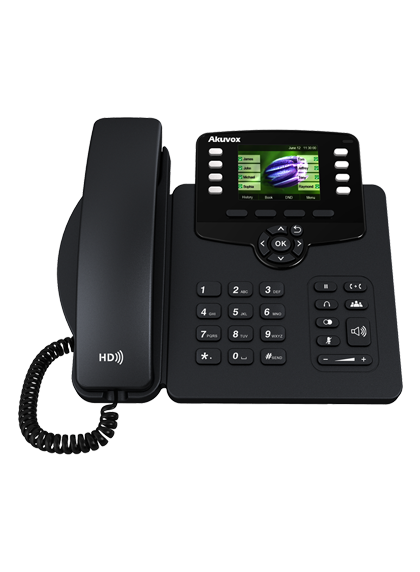

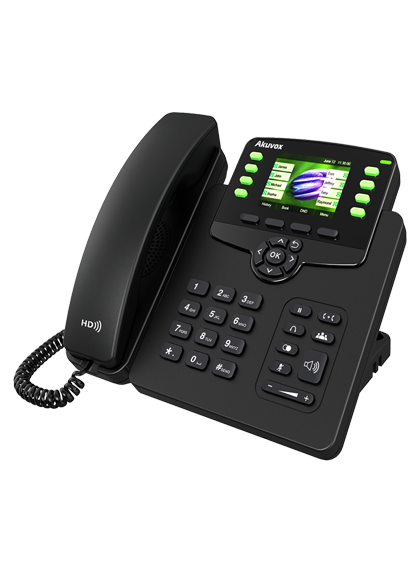

SP-R63G

Dual Gigabit Color IP Phone

Akuvox SP-R63G is Akuvox latest Gigabit Ethernet IP Phone for executives and busy professionals. The new design is based on flagship product Akuvox R53, with high resolution TFT color display, delivering a rich visual experience. Akuvox’s Optima HD technology enables rich, clear, life-like voice communications.

Get a Quote

Specification

  • Highlights

    HD Voice
    Dual-port Gigabit Ethernet, PoE
    Up to 6 SIP Accounts
    2.8" 320 *240 pixel color display with backlight
    Supports Expansion Modules
    Full Compatible with Asterisk, BroadSoft Platform
  • Phone Features

    6 Lines (Support 6 SIP accounts)
    Support Call Waiting, Call Forward, Call Transfer
    Call on Hold, Mute, Auto-answer, Redial, DND
    Local 3-Way Conference
    Volume Adjustable, Ring tones Selectable
    Speed Dial, Hotline
    Multicast Paging
    Daylight Saving Time
    Country Ringtone Signal
    Direct IP call
    Auto Redial, Call Return
    Dial Plan
    XML Browser
    Action URL/URI
    Phonebook (500 entries), Blacklist (100 entries),Call logs (100 entries)
    5 Remote Phone Book URL Supported
    LDAP
    Multi-Language Support
    Support up to 3 Expansion Modules
    Support Wireless Headsets Adapter
  • IP-PBX Features

    SMS, MWI
    Music on hold, Intercom
    BLF(Busy Lamp Field)
    Call Pickup, Group Call Pickup
    Hot Desking
    Call Recording
    Call Completion
    Anonymous Call, Anonymous Call Rejection
  • Audio Features

    HD Voice: HD Handset, HD Speaker
    Wideband Codec: G.722
    Narrowband Codec: PCMA, PCMU, G.729AB, G723_53, G723_63, G726_16,G726_24, G726_32, G726_40
    VAD, CNG , Echo Canceller
    PLC, AJB, AGC
    Full-Duplex Hands-free Speakerphone with AEC
  • Administration Features

    Auto provisioning using FTP/TFTP/HTTP/HTTPS/PnP
    Dial through IP PBX Using Phone Number
    Dial through IP PBX Using URL Address
    Configuration Managements with Web, Keypad on the phone, and Auto Provisioning
    SNMP
    TR069
    Package Tracing Export, System Log
  • Security Features

    Support HTTPS (SSL)
    Support SRTP for Voice Data Encryption
    Support Login for Administration
    OpenVPN, IEEE802.1X
    Digest Authentication Using MD5/MD5-sess
    AES Encryption for Configuration file
    Keypad Lock
    Prevent SIP Hacking
    SIP Over TLS
  • Network Features

    SIP V1(RFC2543), V2(RFC3261)
    Network Type: IPv4 & IPv6
    Network Packet Capture
    Fully Compatible with Asterisk, BroadSoft Platform
    QOS
    Route Mode
    LLDP
    NAT Transverse: STUN Mode
    Static IP/DHCP for IP configuration, pppoe
    3 DTMF modes: In-Band, RFC2833, SIP INFO
    HTTP/HTTPS Web Server for Management
    Proxy Mode and Peer-to-peer SIP Link Mode
    NTP for Auto Time Setting
    UDP/TCP/DNS-SRV(RFC 3263)
    TFTP/FTP/HTTP/HTTPS Protocols
    802.1Q VLAN
  • Physical Features

    Audiocodes Chipset
    16M Bytes Flash Memory
    2.8" 320 *240 pixel color display with backlight, display up to 262K colors
    Acrylic Cover
    39 Keys (with 4 Soft Keys, 10 Programmable keys)
    1 Voice Mail Light
    9 LED Lights (1 Power Light, 8 dual-color (red or green) illuminated LEDs for line status information )
    2*RJ45 10/100/1000Mbps Ethernet Ports
    1*RJ12 (6P6C) EXT port
    PoE: IEEE 802.3a
    1*RJ9(4P4C) Handset Port and 1*1*RJ9(4P4C) Headset Port
    AC Power Adapter: Input: AC 100-240V; Output: DC 5V/2A
    Operating Humidity: -10~95%
    Storage Temperature: -10~50℃
    Gift Box Size: 250 x 206 x 109(mm),weight: 1.6 kg
Note: To learn about the specification of other models, please download the datasheets at the Download Center.
